PCB Vision System for Component Inspection

These PCBs are tested after soldering. If any of these defects are found, it may get detected during follow up testing. However, sometimes it is not possible to repair the PCB, or it is time consuming / duplicate activity reducing the production volume. So, here is the Visual Inspection solution of such PCB assemblies to detect various types of defects.

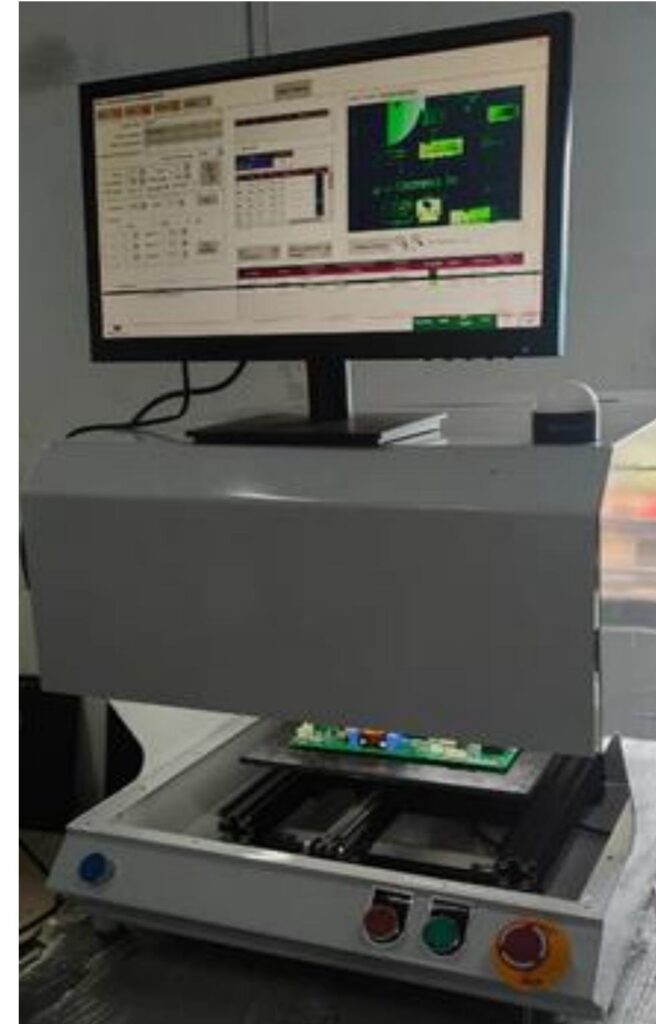

IDEAL RESOURCES PRODUCT PVT LIMITED offer this camera based Online Inspection Solution where the vision system can inspect the assembled PCBs to detect various defects in the assembly process. Also, this vision system can detect the wrong polarity / wrong placement of the components on the PCB. After complete inspection of the PCB, all the defects are listed on the screen to manually intervene and correct the defect before proceeding.

The components vary in size, shape, colour, profile, etc. Also, the positions change from PCB to PCB. So, the solution provides recipe definition for each PCB. The PCB recipe contains the selection of
components along with the position and orientation. Thus, the system is very dynamic and extendable.
